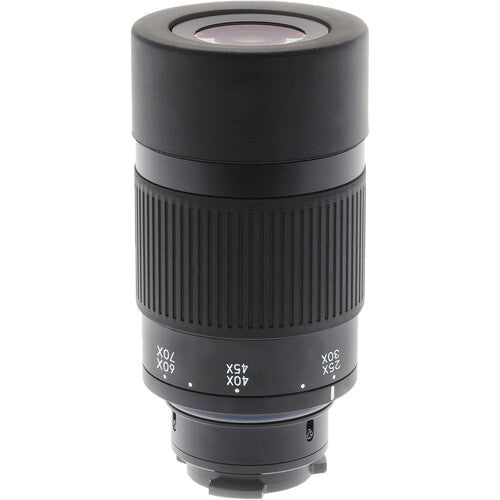

Kowa TE-11WZ II Wide Zoom Eyepiece
- 10 YEAR WARRANTY
- XD LENS
|Exit pupil||Eye relief||Field of view at 1000M||Magnification||Real field of view||Relative brightness||Length||Weight|
|3.5~1.5mm (TSN-880) 3.1~1.3mm (TSN-770)||17.0mm||42~23M||25~60x ZOOM||2.4~1.32 degrees||12.4~2.2 (TSN-880) 9.5~1.6 (TSN-770)||111mm||370g|
KOWA TE-11WZ II 25-60X wide zoom for TSN 880/770 spotting scopes. It also fits new 99 scopes.
A first for any KOWA eyepiece, the optical construction of the TE-11WZ II contains 2XD-lenses.
Images are delivered with outstanding sharpness even at 60X magnification.
Chromatic aberration is limited at the highest level.
Eye relief of 17mm remains constant throughout the magnification range.
Suitable for the following Kowa spotting scopes:
TSN -771*, TSN-772*, TSN-773, TSN-774, TSN-881*, TSN-882*, TSN-883, TSN-884, Telephoto lens**, new 99 scopes.
* Product no longer available
** Requires TP-88EC1 prism adapter
*Prism adapter TP-88EC1 is required
For digiscoping, the new TE=11WZ can be used without any vignetting problems or alteration of eye relief even when turning the zoom from 25X to 60X.
